- Assume that you have been injecting at a constant rate into a fully penetrating well and that you then shut it in. The pressure is often reasonably assumed to be constant at a distance re from the wellbore, due to the interaction of the injector and surrounding producers.
- Notice the difference between all producers and an injector-producer combination. For producers, there is a boundary between the wells where no flow takes place. For an injector and a producer, there is often a boundary condition midway between the two where there is a contour of constant pressure. Since the pressure distribution is different between these two cases, you need to calculate the average reservoir pressure differently than you would for producers alone.
 Back to Key Issues
|
Previous
|
More Details?
|
Monitoring Best Practices
|

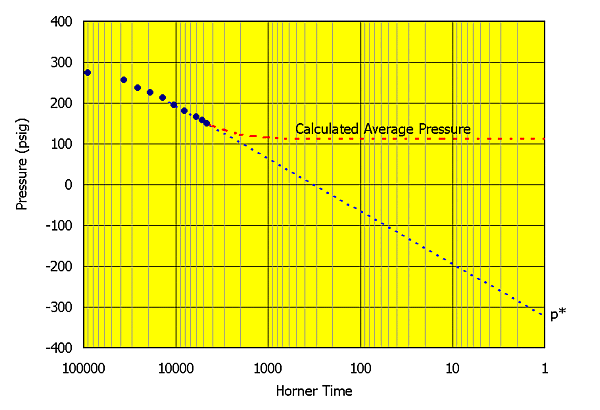

- In conventional production situations, you can often approximate the average pressure, without much error by doing a Horner plot and extrapolating. This can result in significant errors when you analyse falloff data from an injector. This extrpolated value, a false pressure, p*, can be considerably different from the average reservoir pressure. It is necessary to calcuate the average pressure from relationships between the false pressure and the average reservoir pressure.
-
Horner's method does not apply to closed or multi-well systems without correction. In closed, single-well reservoirs, the average pressure generally is above the extrapolated false pressure, p* (considering injectors). There are situations where the opposite can be true. It is generally most appropriate to use the Matthews-Brons-Hazebroek Method. Other methods are available and may have specific application. The shape of the injection area and the configuration of surrounding injectors and producers can make predictions difficult.
- Remember that many of the simple standard methods only apply to unit mobility situations.
