Method	Application	Precautions
Injectivity/ Falloff (including multi-rate)	Permeability, skin, front position, boundaries, average reservoir pressure	Non-unit mobility Non-isothermal Relative permeability differences Density differences
Falloff for Average Reservoir Pressure	Average reservoir pressure	Simple solutions apply to unit mobility situations Consider the shape of the injection area and the influence of other injectors and producers The extrapolated pressure can be significantly different than the average pressure. This is very important. Extreme complications in layered formations, especially if zones are not individually isolated. Significant difficulties in interpreting data for fractured injectors.
Hall Plots	Progressive damage, stimulation, assessment of skin	Essential to use bottomhole pressure Averaging modulates influence of events and only progressive deterioration is often readily evident.
Pulse Testing	Permeability, permeability anisotropy, storage, compressibility or average reservoir pressure and reservoir continuity.	Signals are small and measurements can be affected by noise. There is no way in practice to account for wellbore storage without assuming that the reservoir is homogeneous and isotropic. At least two wells are required.
Interference Testing	As above	Long duration test. Additional considerations are required if boundaries are close. The rates at the active wells should be fairly constant. Wellbore storage and skin effects at the pulser and the responder (active and passive wells) can lead to complexities and uncertainties in the results, especially if the dimensionless distance between the two wells is less than 1,000 or if the duration of the pulse is too short. There are other complicating factors for pulse testing (lunar-solar tides, oilfield activities, natural or hydraulic fractures, multi-layering, the presence of gas ….Lunar and ocean tides are periodic. In an inland reservoir, these can cause pressure variations of ±0.015 psi. In near-shore and offshore reservoirs, the pressure fluctuations due to tides can be ±1 psi. The high compressibility of gas tends to suppress or attenuate the pressure signal at the observation well. Unless, and even if, the reservoir is homogeneous, isotropic and infinite, interpretation can be ambiguous and conjectural. At least two wells are required.
Step Rate Testing	Step rate testing allows for determining when a fracture will propagate and when a preexisting fracture will reopen. It can be run after a conventional falloff or a final falloff segment can be used in the test. Repeated falloff testing can also be used to assess if a reservoir has been altered by thermal changes in in-situ stresses or changes in kh associated with thermal effects.	Varying fluid loss. Out-of-zone growth. Varying perforation/completion friction needs to be reliably accounted for. Damaged cement bond can make step down cycles difficult to interpret. Fracture reopening may cause interpretation difficulties. Consider transient effects. Consider thermo- and poroelastic stress changes.
Hydraulic Impedance Testing	Detect hydraulic (or natural) fractures intersecting a wellbore, determine the fracture closure pressure (indicative of the total minimum in-situ stress), and, to estimate fracture dimensions.	Are frictional effects in the tubulars adequately handled? Coupled with two dimensional fracturing model? May be susceptible to changes in fracture compliance due to cake. Some doubt about selection of the average fracture width? Some concern about the effects of near-wellbore tortuosity and height? Some anecdotal inferences as to insensitivity to fracture height? Some possibility for interpretive confusion due to out-of-gauge but unfractured wellbores? Bias towards uppermost fractures or washouts? Anecdotal references to excessive attenuation if the fracture is too long?
Production Logging Testing (PLT)	Run to assess conformance issues and partitioning of flow into individual lithologic zones or into discrete portions of long sections (i.e., preferential injection into the heel in some horizontal wells).	As intervention is required, costs can be prohibitively high, unless scheduling corresponds to planned workover activities. Even so, operations can be quite expensive. Interpretation of pressure transient information in multiple zones taking fluid requires rigorous methods and analysis. Interpret temperature data with caution as cooldown/warmup may be an artifact of injection into another area. Strongly consider fibre optics methodologies for future wells.
Tracer Surveys	Tracers are added to the injection fluid and collected by sampling at production wells (single well tracer tests can also be carried out). Directional flow trends Flow barriers Communication between zones Sweep efficiency	Safety and regulatory compliance Selecting an acceptable tracer Uniqueness of interpretations For detailed, quantitative interpretation, sophisticated modeling may be needed Consider the cost of the additional services and compare it with the benefits.
Fibre Optics	Fiber optics involves the transmission of light through fibers or thin rods of glass or some other transparent material with a high refractive index. Light that enters one end of a fiber can travel through the fiber with very low loss, even if the fiber is curved. Images can be transmitted, as can data. Continuous or point measurements of some in-situ parameters Communications Temperature, pressure, rate, sand concentration, vibrations ...	While it is a relatively immature technology, future applications seem promising for continuous monitoring and minimizing the number of interventions (both for remedial work and for measurements). Vendors have been working to overcome certain issues Hydrogen attenuation (coatings, etc., usually overcome this, but; long-term field performance will be the final reflection of this). Avoiding water ingress is necessary but generally doable with new wet-connect systems and hermetic sealing. Durability? Cost: You decide. There will be extra costs for materials, for installation and for continuous monitoring. Assess these against future operational expenses for intervention (remedial or testing).
Leakoff Testing	Formation Integrity Testing (FIT) is performed to evaluate the integrity of the casing shoe. Conventional leakoff testing provides rudimentary approximations of the pressure at which a formation will breakdown.	For FIT, little information on the formation can be recovered. If the shoe does not fail, only an approximation of the minimum level of the breakdown pressure is possible. Conventional leakoff testing can provide an indication of the breakdown pressure of the formation - this is not the minimum in-situ stress. Conventional leakoff testing commonly provides characteristics of non-pay, unless you drill far enough ahead before the measurement.
Extended Leakoff Testing (XLOT)	An extension of conventional leakoff testing where there is more "rigorous" recording (nominally) of pressure and rate data, where there are usually somewhat extended shut-in periods following injection, and where multiple injection/shut-in cycles are performed. The minimum and in some cases, the maximum horizontal stress can be determined.	Slight additional expenditure in comparison to conventional leakoff testing. Data interpretation is quite possible but it may not be a rudimentary operation (may require assistance from a "specialist." Information may be biased to non-pay. This is not necessarily completely "bad" because it is desirable to know the stress conditions in bounding zones. Be patient and record adequate data while the well is shut-in. Run multiple cycles. Preferably record data electronically. Adequately correct data to bottomhole conditions presuming there is no downhole measurement. Rates are usually low enough that frictional losses may be second order.
Microhydraulic Fracturing	Fundamentally similar to XLOT. Stress measured by hydraulic fracturing in any zone that you can isolate.	Expense and methods for isolating zones. Data interpretation is quite possible but it may not be a rudimentary operation (may require assistance from a "specialist." Be patient and record adequate data while the well is shut-in. Run multiple cycles. Preferably record data electronically. Adequately correct data to bottomhole conditions presuming there is no downhole measurement. Rates are usually low enough that frictional losses may be second order.
Tiltmeter Testing	Fracture orientation/dimensions	Uniqueness of inverted signals. Some depth limitations if in-well devices not used. Impact of noise on in-well devices? Cannot be run in steeply inclined or horizontal wells.
Microseismic Monitoring	Orientations of one or more fractures and some indications of the areal dimensions	Uniqueness of inverted signals. Complex interpretation. Sophisticated noise filtering and background monitoring are required.
Real-Time Diagnostics	Using technology borrowed from the stimulation community, some indications of depth of damage can be determined during acidizing operations and Nolte-Smith analysis concepts can be implied to infer fracture growth characteristics.	Extensions of the analyses to three-dimensional geometries needs to be considered with caution. The fluid loss mechanisms in most of the hydraulic fracturing interpretations are usually based on the square root of time.

Method	Continuous	"Point-in-Time"
Injectivity/Falloff		X
Hall Plot	X
Pulse Test	x1	X
Interference Test	x1	X
Step Rate Test		X
Hydraulic Impedance Test		X
Production Logging Test	x2	X
Tracers	x3	X
Fibre Optics	X4	X4
Leakoff Test		X5
Extended Leakoff Test		X
Micro/Minifrac		X
Tiltmeter	X6	X7
Microseismic	X8	X9
Real-Time Diagnostics	X	X

---

1	Would need dedicated observation well(s).
2	With continuous downhole measurement over zone(s). There could be a lot of noise.
3	Possible, but may be expensive.
4	Can monitor temperature, rate, pressure, vibration continuously for use in other continuous processing techniques. Can be used for recording environmental parameters (temperature, pressure, rate) for controlled "point-in-time" measurements.
5	During construction.
6	Likely need dedicated observation well(s). There are current limitations on angle of deployment of tools.
7	Need an "abnormal" event to sense changes over a short time period (frac job?).
8	Need dedicated observation well(s) or possibly in the future sea bed sensors.
7	Need an "abnormal" event to sense changes over a short time period (frac job?).

Back to Key Issues

Previous

More Details?

---

Method	Stresses?	Comments
Injectivity/Falloff	Yes	Some of the early work in interpreting pressure signatures after a shut-in started to conceive of looking for anomalies in the pressure signature by using standard pressure transient analysis time transformations - i.e., looking for trends in the declining pressure as functions of Horner time, the square root of time and the quarter root of time. These concepts still apply. You are looking for pressures where there is an indication that a fracture has closed and there is a change in flow regimes. This is commonly complicated because no fracture will completely close and there will be some sort of linear feature at all times. Regardless, look for "anomalies" or changes in flow regime with time, using standard time transformations. Logarithmic diagnostic curves are often useful and superposition techniques may assist in accounting for the rate fluctuations in the actual injection portion of the test.
Hall Plot	Possibly	If a fracture has been created, the Hall plot may ultimately show a reduction in slope, reflecting the associated decreased skin. It can be possible to extrapolate backwards on the plot (over the section of reduced slope) and back the pressure out where the change occurred from the pressure function. This bottomhole pressure should approximate the pressure required for equilibrium between the pressure in the fracture and the in-situ stresses acting to close it. This analysis is complicated by the fact that the Hall plot can represent substantial injected volumes and the in-situ stress may be changing because of poroelastic and thermoelastic effects - i.e., be careful in how you extrapolate. In fact, this may be advantageous. Any difference between the extrapolated pressure and the actual bottomhole pressure when the change is inferred to occur can be indicative of changes in stress due to any changes in local/regional temperature and pressure. As always, any Hall plot analysis is contingent on reliable bottomhole pressures and knowledge of the formation pressure variation with time.
Pulse Test	Unlikely
Interference Test	Maybe	If there are incidents at an injector, they may be reflected by measured changes at a producer and at one or more of the observation wells when fracturing changes the time to breakthrough or increases the sweep.
Step Rate Test	Yes	One of the fundamental uses of step rate tests (both step-up and step-down) is to determine the so-called parting pressure which is going to be representative of the current total in-situ stress acting normal to the fracture, to prevent it from opening. Don't forget that fractures do not completely close when you shut down and you probably want to adopt non-routine methods of step rate analysis (incorporating superposition techniques) to evaluate your data. For more information, click on the link to the left.

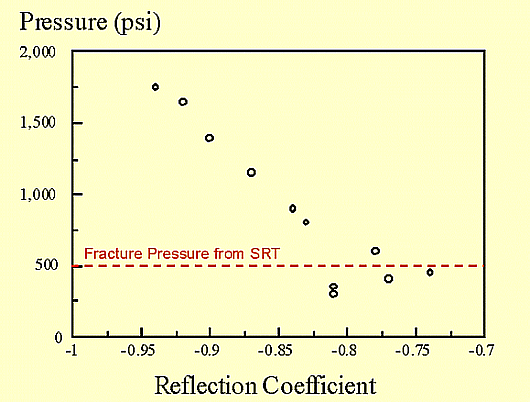

Hydraulic Impedance Test	Yes	Consider an actual example, for a new North Sea well. An SRT was done to start up. Before fracing, in a 4 1/2 into 7-inch liner, when HIT was done, reflection was seen from the liner and the bottom of the well. Above frac pressure, you could see the frac and the tubing. When the pressure was reduced, you saw the initial signature. This was a new well and you could see that, in fact, it has been fraced. Consider another example. This was for an older North Sea well. Falloff data were available. The response for multiple HITs during falloff can be summarized as: "AS YOU GO DOWN IN PRESSURE DURING A PRESSURE FALLOFF, EXPECT TO SEE CHANGE IN SIGNAL. IMPEDANCE CONTRAST IS CHANGING AND THE FRACTURE IS CLOSING. AMPLITUDE ALSO CHANGES." With fracture closure, reflection coefficients will change, according to the degree of closure. BP has had good success in inferring the minimum in-situ stress by processing the variation between the reflection coefficient and the bottomhole pressure. The procedure is to take the reflection coefficients and plot them as a function of bottomhole pressure (refer to Figure 1). If you assume a linear elastic fracture system and self-similar closure, you can relate the reflection coefficient to a pressure that is characteristic of what is going on in the fracture. Extrapolate the reflection coefficient to zero and use that pressure as a measure of the in-situ stress. If you use linear elastic and self-similar closure assumptions, it is possible to do this extrapolation with only two points on the plot - you are implicitly coupling a fracture model with the pressure measurements. This overcomes the commonly encountered difficulty that fractures may not completely close and as such, in-situ stress cannot be precisely defined. Figure 1. Reflection Coefficient versus pressure. Complimentary SRT data supports the use of this type of plot for inferring in-situ stresses.
